STARTING THE MALAWI AQUARIUM
SORRY, NOT MAINTAINED ANY
MORE
www.iki.fi/janne.jokinen/malawi/malawi.html
(please link the "stable" address, not the actual url)
I and my wife started a Malawi aquarium in June 1998. Since it required quite much planning and constructing compared to a usual freshwater tank, here is a small description of what I did for someone perhaps to get useful ideas.
1. Literature
Since the fish from lake Malawi have certain requirements concerning the water chemical composition and environment, for example, I advice to go through some literature first.
I surprisingly found one book about Malawi cichlids translated in Finnish, in addition to which I ordered three books from Amazon.com. Here is a list of those books:
Mary E. Sweeney: Malawi Cichlids: Mbuna
Ad Konings: Malawijärven Kirjoarvenet
David E. Boruchowitz: Malawi Cichlids. Keeping and Breeding Them in Captivity
Sabine Melke: Success with Cichlids from Lakes Malawi and Tangayika
The English books are published by T.F.H. Publications, Inc, and the Finnish one by Suomen Akvaariopalvelu. If I should recommend some of those, I would now probably buy my books in the order given above. The book by Sweeney gives a general idea about Malawi aquaria with beautiful figures, while Ad Konings mostly presents systematically different species and their requirements (and with Finnish names!). The third book is quite like the first one, in both contents and quality. The book by Melke is also very good and it is the most complete presentation about the subject, however I didn't like all of the ideas in it. Red gravel, miniature castles inside the tank, horrible space city background figures... I prefer natural biotope.
I also studied the possibility and ways to achieve the correct water chemistry. I called to the local water department, and they told that our pipe water had pH of about 8 and general hardness of 2,9 on the German scale, which values satisfied me. I decided that dolomite gravel and quite dense water changes are sufficient actions for the correct water quality, naturally in addition to filtration.
2. Hardware
For the aquarium system I bought the following components:
Glass tank with aluminium frames, 317 liters, dimensions 130 cm x 45 cm x 52 cm.
Light with two usual daylight fluorecent tubes and a timer.
150 W Visi-Therm submersible heater.
Project PJF 1001 external filter (with 1000 l/h flow, which is not quite enough, as I have noted). As the filter material I have been using (1) Eheim Ehfifix coarce filter medium, (2) Eheim Ehfilav volcanic material for biological filtration and (3) Lapi's filter wool for biological and final mechanical filtration.
Commercial aquarium stand made of aluminium tubes, completed with a self-made wooden cover around it.
Usual granite gravel and dolomite gravel in a mixture of 1:1, as a layer of about one inch. Dolomite gravel, as one alternative, is important for the right chemical composition of water (high pH and carbonite hardness).
Automatic feeder to be used during vacations.
3. The background
As it is generally known, the mbuna fish of lake Malawi like rocky neighbourhood. It is recommended to fill the whole background of the tank, from bottom to top, with rocks to give mbuna caves to hide. However, since we don't have much lighter stones than granite around here, and since I was not satisfied about the idea of having hundreds of kilograms of stone in my living room (on a glass floor of the tank full of water), I tried to find out some lighter alternatives.
I got a hint of using pieces of coal instead of rock, I even saw such installation inside an aquarium. In fact, I suppose that that kind of coal is called anthrasite, which is the hardest type of coal. Anyway, coal is not used for heating here, and the only dealer I found did have only too small pieces of anthrasite. Let's emphasise that I am by no means sure if coal or anthrasite are harmless to the fish or not.
As a result, I decided to make the background of styrofoam (Styrox in Finnish). I asked for assistance via Usenet newsgroups, and Christian Hollman from Canada is acknowledged for his detailed instructions. My procedure loosely follows the one of him.
I started with a sheed of styrofoam, dimensions 1200 mm x 1000 mm x 100 mm.
I sawed the sheet to three separate pieces, which together covered the background
of the tank (with dimensions of 1300 mm x 520 mm).

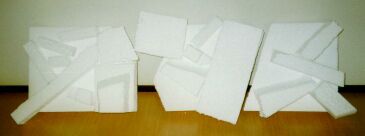

After
that I cemented with silicone smaller pieces of styrofoam
onto the shaped pieces (See figure on the right. All figures are thumbnails
to bigger images). As a result, I had pieces with one to three layers of
10 cm each. I tried to shape the intersections between separate pieces
and to position the cemented smaller pieces so that one could not see
through the intersetions to the background glass or even outline the
intersections.
As the second stage I cut holes to the styrofoam to get
it look like rock formations. Especially I tried to get as many caves as
possible. I also made some internal connections between the caves. I had
two knives as tools: one with an 18-cm blade (called Lapin leuku in Finnish),
the other with a 7.5-cm blade. With the longer one I could make some coarse
structure, however the smaller one was very handy in digging small holes.
Since I wanted to hide all the unnatural aquarium equipment, i.e. heater,
filter tubes, thermometer etc., I also cut 60 mm x 60 mm vertical holes to
both of the back corners. For the filter output I had to, however, make a
hole that is visible from the front. In order to get enough circulation for
the hidden heater and filter intake, I had to make many caves that have
another opening to the "equipment rack".

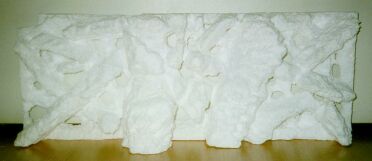

On the left there are two figures of this stage. On the
top one can see the structure from the front side, on the bottom from the
back side. On the lower figure one can see the vertical holes for the equipment.
On the other upper corner one can also see the hole for the filter output.
I did the styrofoam shaping job in our bathroom. As a result I got one 150-liter
plastic bag full of small chop, sticking to clothes and everything due to
electricity.
After shaping the pieces I tried to smooth the surface in order to hide the styrofoam cellular structure. I used a hot air blower, which gave out temperature of about 500ºC. The result was not quite what I wanted. The styrofoam cells shrinked, but left the structure visible. I wonder if I had used a blow-torch, would I have received a better result? I did the heating of the styrofoam outside due to possible toxic gases.
Next, I painted the structure with a special latex paint. I wanted to use some toy-approved water-resistant paint, however the major paint pruducer that I contacted had usable paint only for industry use, sold in barrels. The problem with usual oil-soluble paints is that they dissolve also the styrofoam. In fact, someone told that local kids make napalm of their own with paint and styrofoam... Anyway, I had to use latex paint. I had taken care, of course, that the paint did not contain any toxic materials. I used three colours: black, gray and something between brown and red.
I don't expect latex paint to stay under water as the uppermost surface, because of which I used another layer on it. In order to get a hard surface that would save the styrofoam from being bitten away, I coated the surface with epoxy resin (epoksihartsi in Finnish). I was adviced not to use fibreclass resin, which as polyester-based will dissolve the styrofoam. Finding epoxy resin was a bit difficult, however I found one local company that uses it for repairing concrete structures. It was sold with trade name injection resin (injektiohartsi in Finnish). The resin was a bit costly (see below), because of which I bought only one liter of it. In fact, that was also the main reason for painting the structure before resin: I was adviced to coat the surface with sand and resin, but since I did not know how much resin it requires, I decided to be sure to get even some non-white colours without liters of resin. Getting in touch with the guy I bought the resin from required also some arrangements, and I did not want to disturb him several times due to my small amounts of resin.
Epoxy resin is two-component stuff and quite harmfull, I
am told. It will harden after about 15 minutes from mixing, depending on
the temperature. I mixed my one liter of resin in several portions, and used
usual paint brush to spread it on the surface. I tried to be as accurate
as possible especially in the case of caves. This stage I did also outside
because of possible toxics, however I got some resin on my hands, too (and
didn't note anything special in that). Once I panicked quite much, when I
got a drop of resin on my eye-glasses, fortunately I could wash them early
enough. When the resin was hardened, I made some new cycles with the resin,
now throwing fine sand on the wet surface. As a result I got a quite realistic
surface, more or less rock-like. I run out of resin, but with another liter

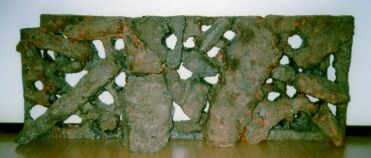

of it I would have coated the whole surface with sand. On the right one can
see the background after painting, resin, and sand. After this I tried to
wash all possible chemicals from the structure with water.
Finally, I was able to put the backgroud inside our tank. I had started the background project even before getting the tank, with only dimensions available. When I received the tank, I met, however, one problem. Our tank had three strips of glass above the water surface holding the cover glasses. Two strips were in both ends of the tank. I had made vertical holes to the back corners so that I could not get filter tubes in, throught the glas strips! Furthermore, even though I had made my background in three parts, they were so huge in all dimensions that I could not get them in due to three glass strips. I had to remove two of the strips with a razor blade - this resulted five wounds into my hands. Anyway, I positioned the styrofoam to its place and cemented it with cilicone, and cemented the glass strips back, this time to positions where the tubes of the filter could be used. I had checked that those two strips were used only for holding the cover glasses and they did not have any structural function for the tank. Because of our vacation trip I left the silicone to dry for about one week, after which I filled the tank with water and left possible chemicals to dissolve for about two days. After that I started the usual aquarium water aging process with new water.
The figure on the right shows the background after filling
the tank with water. If one looks carecully (perhaps clicking the larger
image), the output of the filter can be seen on the upper left corner. Below
the filter output is a small red dot, which is adjuster of the heater.
Symmetrically on the right are intake of the filter and thermometer, which
can not, however, be seen on the figure.
Today, it has been about four months since starting the system. Nowadays the background seems very realistic, that is even better than in the figure above, because of growth of green and red algae. At the beginning, since I did not have enough resin, one could easily see cellular structure of styrofoam in places where there was no sand but only paint and resin. Also, the intersections between the three separate styrofoam pieces can not be easily seen.
4. Materials
Here is a list of materials that I used for the background, in case that someone, most probably here in Finland, is looking for them. I can not guarantee that they are the best choices, or even safe, however in our tank everything seems to be running fine.
Styrofoam: Styrox 100R 1200 mm x 1000 mm x 100 mm. One sheet was enough for our tank.
Silicone: Bostik 2680. One can of 0,3 liters was more than enough. Remember to check that your silicone is for glass, and it does not contain any toxic chemicals against mould. For example, in that particular can there was a figure of an aquarium.
Latex paint: Special latex paint Eko-Joker by Tikkurila Paints Oy. I had three small cans with three different colours, sizing 2.25 - 1/3 liters each. I checked that the paint does not contain any toxics, however using the latex paint was something that scared me most. Anyway, after four months I have seen no escape of paint under the resin.
Epoxy resin: Nanten IHP-Injektiohartsi by Oy Finnpak Ab. I used one liter, but as I have told, I would have had use for another one. Finding resin was a bit difficult and required quite many phone calls, and I found only two places near me. The other one, which I used, was a company repairing concrete structures, for which they use injection resin. The other was a small workshop making boats, however I suppose they had bought their resin for using it in composing electronics. Remember not to use fibreglass resin, which is the most usual alternitive if you go to check materials for boat repairing, for example.
5. Expences
I will not cover cost of the usual equipment, such as tank, filter, stand etc., since those prices can be obtained from the local pet store. However, here is a calculation for the background:
Styrofoam: FIM 34,80
Silicone cement: FIM 35
Latex paint: FIM 109
Epoxy resin: FIM 128.10
Some tools (like silicone tube squeezer) that I did not already have, and three cheap Chinese brushes for epoxy resin, which I lost due to hardening: a few dozen FIMs.
During those days, USD 1 was about FIM 5.5.
6. What to do differently now?
I might study the use of anthrasite again, since the construction required dozens of hours, which I hardly had only during my summer vacation.
I would make a bit different kind of caves. My current caves are perhaps too open, and I would make smaller openings to them. I would also make more connections between the caves, since caves with several entrances seem to be most popular.
Now, after learning how to use epoxy resin, I would probably not use paint at all. Instead, I might just use resin and sand on the surface, since, as I learned, one indeed is able to fill the entire surface in that way and it seems much more realistic than paint. Anyway, now I have learned that even latex paint can be used, and after a couple months of algae growth that makes no big difference.
The water circulation is a bit problematic, perhaps due to the hidden filter input. I would study different configurations and their effects on circulation.
7. Later major modifications
Back to main page of Janne's Malawi Aquarium Pages
Images and text on this page copyright Janne Jokinen1998-
Janne
Jokinen
28/11/1998-, last modifications 8/2/2003
